HDL Transformation Formula Deep Dive — Part 1: OPERATION Routing, METADATA Arrays, MAP Steps, WSA Caching, and LINEREPEATNO

Part 1 of 3 · HDL Transformation Formula Series

A third-party benefits vendor sends a CSV of deduction amounts every pay period. This formula turns each row into Oracle HDL format — resolving SSNs to assignment numbers, mapping vendor codes to element names, managing MultipleEntryCount, and generating both header and detail rows. This part covers the concepts. Part 2 is the code, Part 3 is the WSA implementation.

The Big Picture

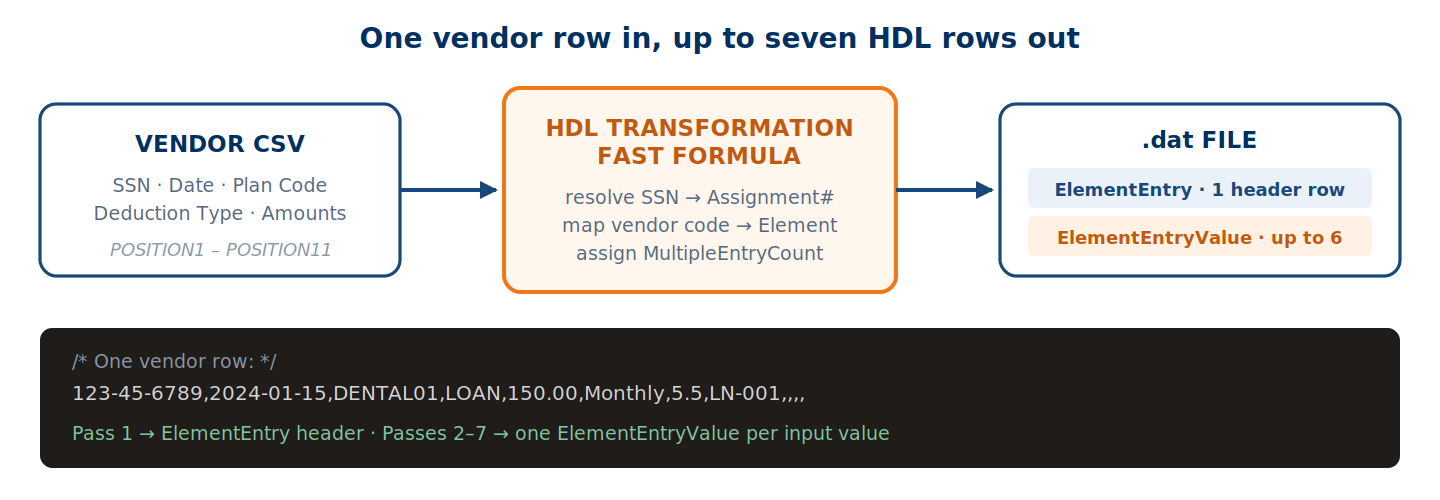

One vendor CSV row entering the transformation formula and producing an ElementEntry header plus ElementEntryValue rows

Every pay period the vendor sends a flat CSV with deduction details — medical, dental, vision, life, FSA, HSA, loans. The formula’s job is to translate each row into the .dat file HDL expects.

Section 1: The Vendor Inbound File

Each row maps to a set of delimited columns. The HDL engine reads them into POSITION variables.

Column	Position	Description	Example
SSN	`POSITION1`	Employee Social Security Number	123-45-6789
EFFECTIVE_DATE	`POSITION2`	Date the deduction applies	2024-01-15
BENEFIT_PLAN_CODE	`POSITION3`	Vendor’s internal plan code	DENTAL01
DEDUCTION_TYPE	`POSITION4`	Controls branching and how many input values load	LOAN, PRE, POST, CU
AMOUNT	`POSITION5`	Deduction amount	150.00
PERIOD_TYPE	`POSITION6`	Period type for the deduction	Monthly
PERCENTAGE	`POSITION7`	Percentage for PRE/POST types	5.5 or blank
LOAN_NUMBER	`POSITION8`	Loan number, LOAN type only	LN-001 or blank
—	`POSITION9–10`	Reserved / additional fields	varies
STATUS	`POSITION11`	`C` = cancel/end-date, blank = active	blank

POSITION4 is the most important field after SSN and date. It controls which LINEREPEATNO passes execute and which input values get loaded.

Section 2: Why Value Sets?

The vendor gives us an SSN and a vendor deduction code. Oracle needs an Assignment Number and an Element Name. Completely different identifiers in completely different systems.

Value sets are the bridge — SQL-backed lookups that run inside the formula engine. This formula uses eleven.

#	Value Set	What it does	Returns
1	`XXVA_DEDUCTION_CODES`	Vendor plan code → Oracle element name	Element Name
2	`XXVA_DEDUCTION_CODES_INPUT`	Element → its input value name	Input Value Name
3	`XXVA_GET_LATEST_ASSIGNMENT_NUMBER`	SSN + date → assignment number	E12345
4	`XXVA_GET_PERSON_NUMBER`	SSN → person number	100045
5	`MAX_MULTI_ENTRY_COUNT`	Highest existing count for Person+Element+Date	Max count or NULL
6–7	`GET_ELEMENT_ENTRY_SOURCE_SYSTEM_ID` / `_OWNER`	Existing SSID/SSO for MERGE key reuse	Existing SSID/SSO
8–9	`GET_ELEMENT_ENTRY_VALUE_SOURCE_SYSTEM_ID` / `_OWNER`	Same at value level	EEV-level SSID/SSO
10	`GET_ELEMENT_ENTRY_START_DATE`	For cancel rows — original start date	Start date
11	`GET_ELEMENT_ENTRY_INPUT_START_DATE`	Input-value-level start date	Start date

Section 3: INPUTS ARE

INPUTS ARE OPERATION (TEXT),
LINEREPEATNO (NUMBER),
LINENO (NUMBER),
POSITION1 (TEXT), POSITION2 (TEXT), POSITION3 (TEXT),
POSITION4 (TEXT), POSITION5 (TEXT), POSITION6 (TEXT),
POSITION7 (TEXT), POSITION8 (TEXT),
POSITION9 (TEXT), POSITION10 (TEXT), POSITION11 (TEXT)

DEFAULT FOR LINENO IS 1
DEFAULT FOR LINEREPEATNO IS 1
DEFAULT FOR POSITION1 IS 'NO DATA'
DEFAULT FOR POSITION2 IS 'NO DATA'
/* ... same for POSITION3 through POSITION11 ... */

Variable	What it does
`OPERATION`	The engine calls the formula repeatedly with different values — `FILETYPE`, `DELIMITER`, `READ`, `NUMBEROFBUSINESSOBJECTS`, `METADATALINEINFORMATION`, then `MAP` per row. The formula is a router.
`LINEREPEATNO`	The repeat counter. Set `LINEREPEAT = 'Y'` and HDL re-invokes for the same row with the counter incremented.
`LINENO`	The line number from the source file.
`POSITION1–11`	The raw delimited columns of the current row.

Section 4: OPERATION — The Setup Handshake

This part never touches vendor data. It configures the engine.

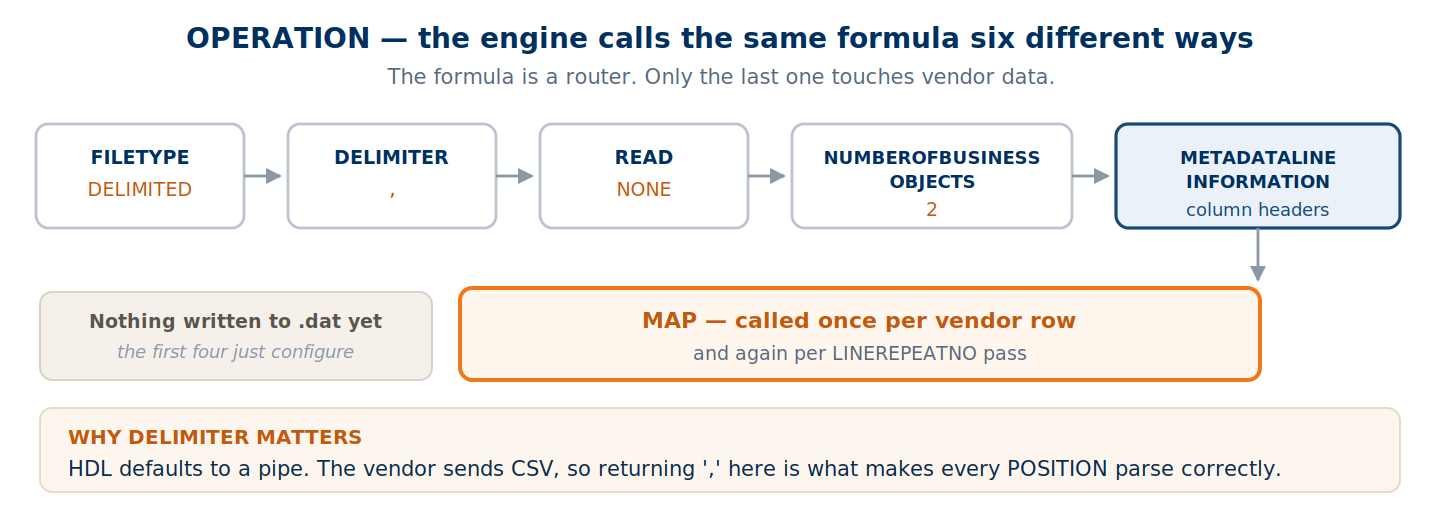

The engine asks FILETYPE, DELIMITER, READ and NUMBEROFBUSINESSOBJECTS before any data is processed

IF OPERATION = 'FILETYPE' THEN
    OUTPUTVALUE = 'DELIMITED'
ELSE IF OPERATION = 'DELIMITER' THEN
    OUTPUTVALUE = ','
ELSE IF OPERATION = 'READ' THEN
    OUTPUTVALUE = 'NONE'
ELSE IF OPERATION = 'NUMBEROFBUSINESSOBJECTS' THEN
(
    OUTPUTVALUE = '2'
    RETURN OUTPUTVALUE
)

Operation	Engine asks	Our answer	Why
`FILETYPE`	What kind of file?	`DELIMITED`	The only valid option for HDL transformation
`DELIMITER`	What separates values?	`,`	The vendor sends CSV. HDL defaults to pipe, so we override.
`READ`	Skip header rows?	`NONE`	No header row in this file — process every line
`NUMBEROFBUSINESSOBJECTS`	How many HDL objects?	`2`	ElementEntry plus ElementEntryValue

Section 5: METADATA — Generating the .dat Headers

Because we declared two business objects, the formula must define two METADATA arrays. These become the header rows at the top of each block in the .dat file.

ELSE IF OPERATION = 'METADATALINEINFORMATION' THEN
(
    /* METADATA1 — ElementEntry column definitions        */
    /* [1] = FileName, [2] = FileDiscriminator            */
    /* are auto-filled by the HDL engine. We start at [3] */

    METADATA1[3]  = 'LegislativeDataGroupName'
    METADATA1[4]  = 'EffectiveStartDate'
    METADATA1[5]  = 'ElementName'
    METADATA1[6]  = 'AssignmentNumber'
    METADATA1[7]  = 'CreatorType'
    METADATA1[8]  = 'EffectiveEndDate'
    METADATA1[9]  = 'EntryType'
    METADATA1[10] = 'MultipleEntryCount'
    METADATA1[11] = 'SourceSystemOwner'
    METADATA1[12] = 'SourceSystemId'
    METADATA1[13] = 'ReplaceLastEffectiveEndDate'

    /* METADATA2 — ElementEntryValue column definitions   */

    METADATA2[3]  = 'LegislativeDataGroupName'
    METADATA2[4]  = 'EffectiveStartDate'
    METADATA2[5]  = 'ElementName'
    METADATA2[6]  = 'AssignmentNumber'
    METADATA2[7]  = 'InputValueName'                    /* changes per pass */
    METADATA2[8]  = 'EffectiveEndDate'
    METADATA2[9]  = 'EntryType'
    METADATA2[10] = 'MultipleEntryCount'
    METADATA2[11] = 'ScreenEntryValue'                  /* the actual value */
    METADATA2[12] = '"ElementEntryId(SourceSystemId)"'  /* parent link */
    METADATA2[13] = 'SourceSystemOwner'
    METADATA2[14] = 'SourceSystemId'
    METADATA2[15] = 'ReplaceLastEffectiveEndDate'

    RETURN METADATA1, METADATA2
)

Those arrays produce these header lines:

METADATA|ElementEntry|LegislativeDataGroupName|EffectiveStartDate|ElementName|AssignmentNumber|CreatorType|EffectiveEndDate|EntryType|MultipleEntryCount|SourceSystemOwner|SourceSystemId|ReplaceLastEffectiveEndDate

METADATA|ElementEntryValue|LegislativeDataGroupName|EffectiveStartDate|ElementName|AssignmentNumber|InputValueName|EffectiveEndDate|EntryType|MultipleEntryCount|ScreenEntryValue|"ElementEntryId(SourceSystemId)"|SourceSystemOwner|SourceSystemId|ReplaceLastEffectiveEndDate

The names in METADATA must match your RETURN variable names exactly. That’s the contract — the engine maps returned values to columns by name.

Section 6: OPERATION: MAP — The Core Transformation

This is the heart of it. When the engine reaches a source row it calls OPERATION = 'MAP', hands you POSITION1–11, and expects Oracle HDL attributes back.

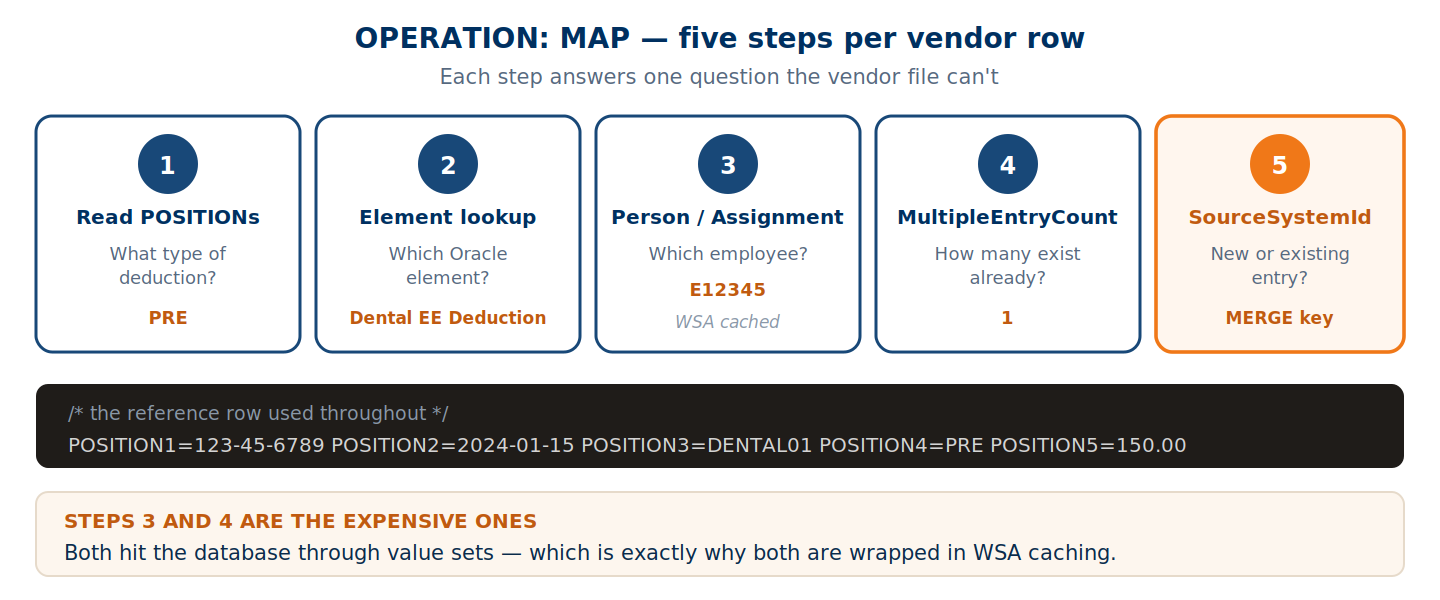

The five MAP steps: read positions, element lookup, person resolution, MultipleEntryCount, SourceSystemId

Step 1 — Read input values from POSITION fields

/* Read the key fields from the vendor row */
l_DeductionType = TRIM(POSITION4)     /* 'PRE', 'POST', 'LOAN', 'CU' */
l_Amount        = TRIM(POSITION5)     /* '150.00' */
l_PeriodType    = TRIM(POSITION6)     /* 'Monthly' */
l_Percentage    = TRIM(POSITION7)     /* '5.5'  (PRE/POST only) */
l_LoanNumber    = TRIM(POSITION8)     /* 'LN-001' (LOAN only) */

Step 2 — Translate the vendor code to an Oracle element

L_VendorPayCode = TRIM(POSITION3)     /* e.g. 'DENTAL01' */

/* Value set 1: vendor code -> Oracle Element Name */
l_ElementName = GET_VALUE_SET('XXVA_DEDUCTION_CODES',
    '|=P_PAY_CODE=''' || L_VendorPayCode || '''')
/* 'DENTAL01' -> 'Dental EE Deduction' */

/* Value set 2: vendor code -> Input Value Name */
l_InputValueName = INITCAP(GET_VALUE_SET('XXVA_DEDUCTION_CODES_INPUT',
    '|=P_PAY_CODE=''' || L_VendorPayCode || ''''))
/* 'DENTAL01' -> 'Amount' */

Step 3 — Resolve the person and assignment

/* Build a unique WSA key from SSN + Date */
/* e.g. 'PER_123-45-6789_2024-01-15' */

IF WSA_EXISTS('PER_' || POSITION1 || '_' || POSITION2) THEN
(
    /* Cache hit - read stored values */
    L_PersonNumber     = WSA_GET('PER_' || POSITION1 || '_' || POSITION2, ' ')
    l_AssignmentNumber = WSA_GET('ASG_' || POSITION1 || '_' || POSITION2, ' ')
)
ELSE
(
    /* Cache miss - call value sets (hits DB) */
    l_AssignmentNumber = GET_VALUE_SET('XXVA_GET_LATEST_ASSIGNMENT_NUMBER', ...)
    L_PersonNumber     = GET_VALUE_SET('XXVA_GET_PERSON_NUMBER', ...)

    /* Save to WSA - next row with same SSN skips the DB */
    WSA_SET('PER_' || POSITION1 || '_' || POSITION2, L_PersonNumber)
    WSA_SET('ASG_' || POSITION1 || '_' || POSITION2, l_AssignmentNumber)
)

Step 4 — Assign MultipleEntryCount

When an employee has more than one entry for the same element on the same date, Oracle distinguishes them by MultipleEntryCount. Getting this wrong means collisions.

/* Check: did a previous row already assign a count for this combo? */
IF WSA_EXISTS('MEC_' || L_PersonNumber || '_' || l_ElementName || '_' || POSITION2) THEN
(
    /* YES - read last assigned count and add 1 */
    l_MultipleEntryCount = WSA_GET('MEC_' || ..., 0) + 1
)
ELSE
(
    /* NO - first row for this combo. Ask the database. */
    l_db_max = GET_VALUE_SET('MAX_MULTI_ENTRY_COUNT', ...)

    IF ISNULL(l_db_max) = 'N' THEN
        l_MultipleEntryCount = 1             /* Nothing in cloud -> start at 1 */
    ELSE
        l_MultipleEntryCount = l_db_max + 1  /* Cloud has 1 -> assign 2 */
)

/* Save what we assigned - next row reads this instead of hitting the DB */
WSA_SET('MEC_' || L_PersonNumber || '_' || l_ElementName || '_' || POSITION2,
        l_MultipleEntryCount)

Step 5 — Build the SourceSystemId

/* For active employees - construct using PersonNumber */
'HDL_XXVA' || l_AssignmentNumber || '_EE_' || L_PersonNumber
           || '_' || l_ElementName || '_' || POSITION2

/* For terminated employees (PersonNumber unavailable) - use SSN */
'HDL_XXVA' || l_AssignmentNumber || '_EE_' || POSITION1
           || '_' || l_ElementName || '_' || POSITION2

The SourceSystemId is the MERGE key. Reuse the same value and HDL updates the existing record; produce a new one and it creates a new record.

WSA Deep Dive — Working Storage Area

WSA is, per Oracle’s documentation, a mechanism for storing global values across formulas. Local variables die after each invocation; WSA values persist across calls within the same session. Write on row 1, read it back on row 500.

Names are case-independent — 'PER_123' and 'per_123' are the same item. In PL/SQL terms it’s a package-level associative array, TABLE OF VARCHAR2 INDEX BY VARCHAR2.

The API

Method	PL/SQL equivalent	What it does
`WSA_EXISTS(item [, type])`	`g_cache.EXISTS(key)`	Tests whether the item exists. The optional type restricts to `TEXT`, `NUMBER`, `DATE`, `TEXT_TEXT`, `TEXT_NUMBER` and so on.
`WSA_GET(item, default)`	`l_val := g_cache(key)`	Retrieves the value, or the default if absent. The default’s data type determines the expected type.
`WSA_SET(item, value)`	`g_cache(key) := val`	Sets the value. Any existing item of the same name is overwritten.
`WSA_DELETE([item])`	`g_cache.DELETE(key)`	Deletes the item, or everything if no name is given.

What this formula caches

WSA key	Stores	Used in
`PER_<ssn>_<date>`	Person Number	Step 3
`ASG_<ssn>_<date>`	Assignment Number	Step 3
`MEC_<person>_<element>_<date>`	Last assigned MultipleEntryCount	Step 4
`HDR_<person>_<element>_<date>`	Whether the header row was already written	LINEREPEATNO = 1

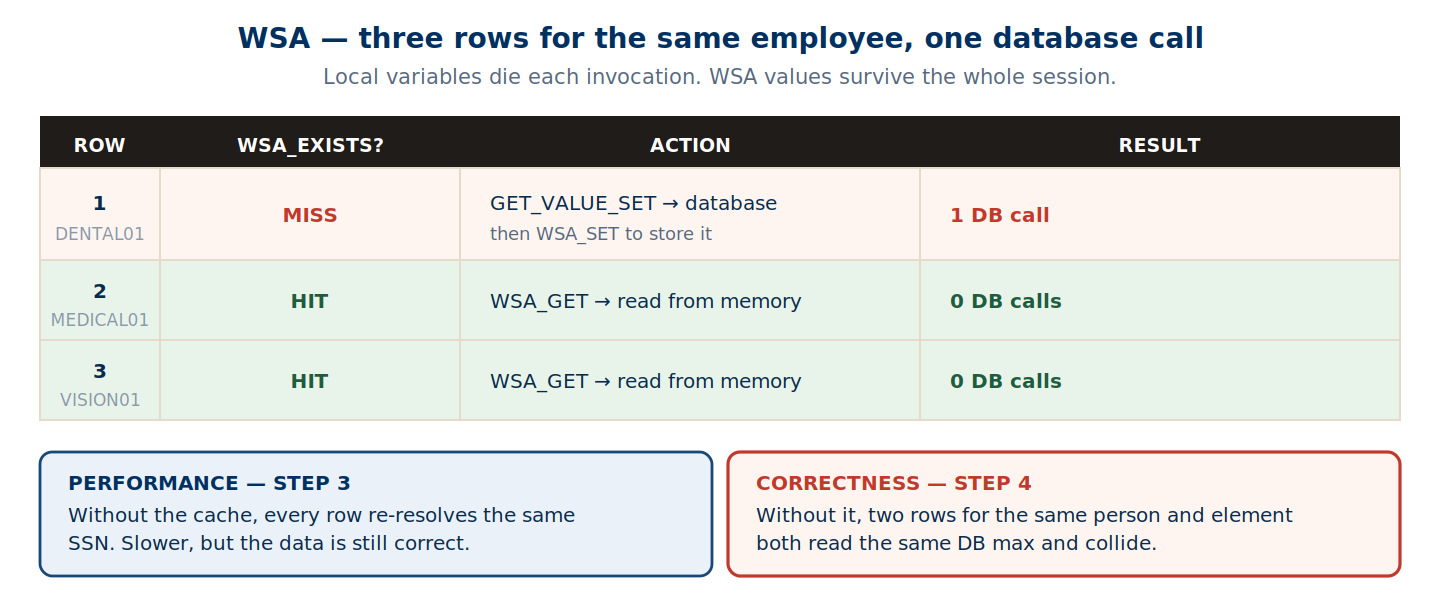

Three rows for the same employee — one database call, then two cache hits

The two uses are not equivalent. In Step 3, dropping the cache costs performance — you re-resolve the same SSN on every row, but the answer is still right. In Step 4 it costs correctness: two rows for the same person and element would both read the same database maximum, both assign the same count, and collide. That’s the bug that puts two rows with MultipleEntryCount = 2 in the .dat file.

Section 7: LINEREPEATNO = 1 — The ElementEntry Row

The engine calls the formula once per source row with LINEREPEATNO = 1. Return LINEREPEAT = 'Y' and it calls again for the same row with the counter incremented.

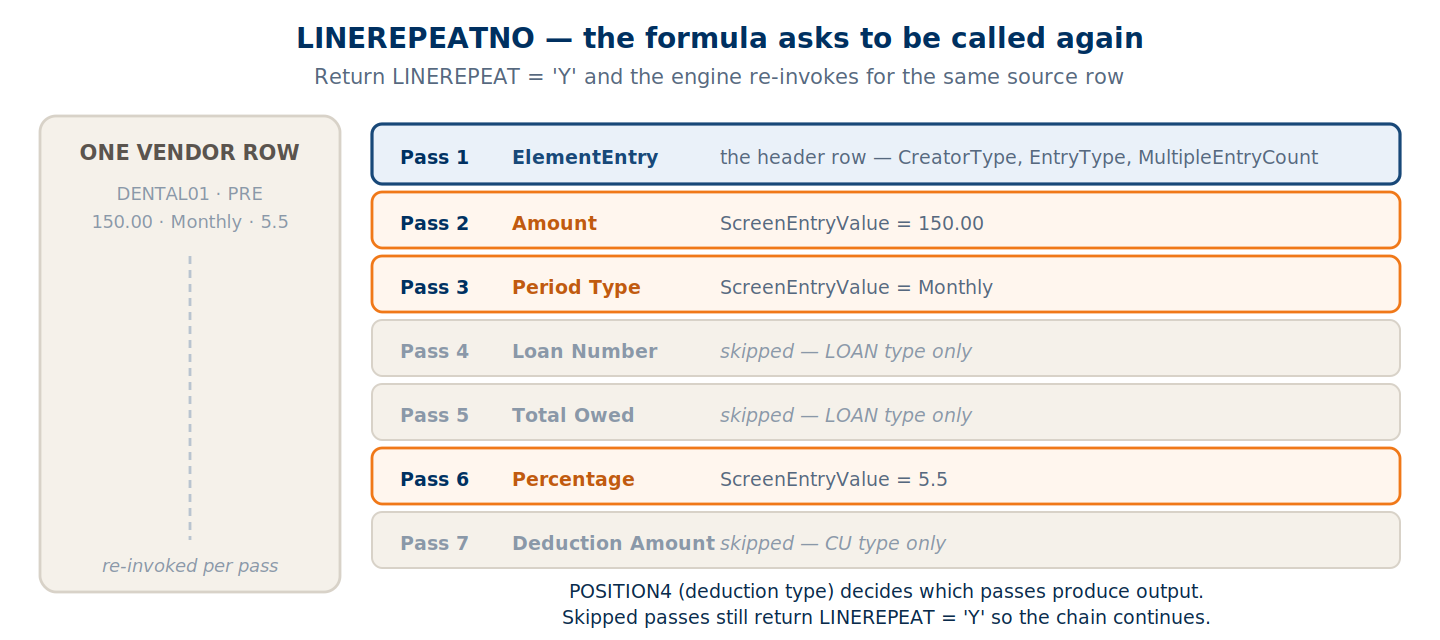

Pass 1 produces the header; passes 2 to 7 each produce one value row, with some skipped by deduction type

IF LINEREPEATNO = 1 THEN
(
    /* ACTIVE entry - create new ElementEntry */

    FileName                 = 'ElementEntry'
    BusinessOperation        = 'MERGE'
    FileDiscriminator        = 'ElementEntry'
    LegislativeDataGroupName = l_LegislativeDataGroupName
    AssignmentNumber         = l_AssignmentNumber
    ElementName              = l_ElementName
    EffectiveStartDate       = TO_CHAR(TO_DATE(TRIM(POSITION2),'YYYY/MM/DD'),'YYYY/MM/DD')
    EntryType                = l_entry_type
    CreatorType              = l_CreatorType
    SourceSystemOwner        = l_SourceSystemOwner
    SourceSystemId           = l_SourceSystemId
    LINEREPEAT               = 'Y'    /* call me again for ElementEntryValue */

    RETURN BusinessOperation, FileName, FileDiscriminator,
           CreatorType, EffectiveStartDate, ElementName,
           LegislativeDataGroupName, EntryType, AssignmentNumber,
           SourceSystemOwner, SourceSystemId,
           LINEREPEAT, LINEREPEATNO
)

The cancel branch

When POSITION11 = 'C', the row is an end-date rather than a new entry:

IF (TRIM(POSITION11) = 'C') THEN
(
    /* Fetch the original start date from cloud */
    l_Effective_Start_Date = GET_VALUE_SET('XXVA_GET_EE_START_DATE', ...)

    FileName                    = 'ElementEntry'
    BusinessOperation           = 'MERGE'
    FileDiscriminator           = 'ElementEntry'
    EffectiveStartDate          = TO_CHAR(TO_DATE(l_Effective_Start_Date,...),'YYYY/MM/DD')
    EffectiveEndDate            = TO_CHAR(TO_DATE(TRIM(POSITION2),...),'YYYY/MM/DD')
    ReplaceLastEffectiveEndDate = 'Y'
    LINEREPEAT                  = 'N'    /* no pass 2 for cancel */

    RETURN BusinessOperation, FileName, FileDiscriminator,
           CreatorType, EffectiveStartDate, EffectiveEndDate,
           ElementName, LegislativeDataGroupName, EntryType,
           AssignmentNumber, SourceSystemOwner, SourceSystemId,
           ReplaceLastEffectiveEndDate,
           LINEREPEAT, LINEREPEATNO
)

Note LINEREPEAT = 'N'. A cancel needs no value rows, so the chain stops at pass 1.

Section 8: LINEREPEATNO = 2–7 — The ElementEntryValue Rows

Each pass loads a different input value.

Pass	InputValueName	ScreenEntryValue source	Applies to
2	Amount	`l_Amount` (POSITION5)	all types
3	Period Type	`l_PeriodType` (POSITION6)	all types
4	Loan Number	POSITION8	LOAN only
5	Total Owed	`l_TotalOwed`	LOAN only
6	Percentage	`l_Percentage` (POSITION7)	PRE / POST only
7	Deduction Amount	`l_DeductionAmount`	CU only

ELSE IF (LINEREPEATNO = 2) THEN
(
    l_InputValueName = 'Amount'

    /* Look up the ElementEntryValue SourceSystemId (or construct a new one) */
    l_EEV_SourceSystemId    = GET_VALUE_SET('XXVA_GET_EEV_SOURCE_SYSTEM_ID', ...)
    l_EEV_SourceSystemOwner = GET_VALUE_SET('XXVA_GET_EEV_SOURCE_SYSTEM_OWNER', ...)

    IF ISNULL(l_EEV_SourceSystemId) = 'N' THEN
    (
        l_EEV_SourceSystemId = 'HDL_XXVA' || l_AssignmentNumber
            || '_EEV_' || L_PersonNumber
            || '_' || l_ElementName
            || '_' || l_InputValueName
            || '_' || TO_CHAR(TO_DATE(TRIM(POSITION2),...),'YYYYMMDD')
    )

    FileName                         = 'ElementEntry'      /* always ElementEntry */
    BusinessOperation                = 'MERGE'
    FileDiscriminator                = 'ElementEntryValue' /* THIS is the difference */
    LegislativeDataGroupName         = l_LegislativeDataGroupName
    AssignmentNumber                 = l_AssignmentNumber
    ElementName                      = l_ElementName
    EntryType                        = l_entry_type
    EffectiveStartDate               = TO_CHAR(...)
    "ElementEntryId(SourceSystemId)" = l_SourceSystemId    /* links to the parent */
    ScreenEntryValue                 = l_Amount
    InputValueName                   = l_InputValueName
    LINEREPEAT                       = 'Y'
)

FileName stays 'ElementEntry' while FileDiscriminator becomes 'ElementEntryValue'. That pair is what tells HDL these rows belong to the same business object but a different block. Getting it wrong is a common cause of orphaned value rows.

A note on formatting amounts — trailing zeros in the source can produce values HDL rejects:

RTRIM(RTRIM(TRIM(l_Amount), '0'), '.')

End-to-End: One Vendor Row

Vendor CSV row:
123-45-6789,2024-01-15,DENTAL01,150.00,,,

STEP 1: Type -> PRE, Amount -> 150.00
STEP 2: DENTAL01 -> Dental EE Deduction
STEP 3: SSN -> Person# 100045, Asg# E12345  (via WSA)
STEP 4: MultipleEntryCount = 1
STEP 5: SourceSystemId constructed

Pass 1 produces the header row:

MERGE|ElementEntry|570|2019/09/22|Dental EE Deduction|123141402543|H||E|1

Pass 2 produces the amount row:

MERGE|ElementEntryValue|570|2019/09/22|Dental EE Deduction|123141402543|Amount||E||1|150.00

What You Now Understand

You can explain, without looking at code, how an HDL Transformation Formula works end to end: what each OPERATION does, why METADATA arrays define the .dat column headers, how MAP transforms source data in five steps, why WSA exists for both performance and correctness, how LINEREPEATNO turns one source row into one header plus up to six value rows, and how named RETURN variables map to METADATA columns.

The concepts don’t change whether you’re building a vendor deduction interface, a benefits enrollment loader, or a payroll costing feed. Every HDL Transformation Formula follows this structure.

Next in the Series

Part 2 — Code Walkthrough. Every concept here shown as actual formula code: the full INPUTS ARE block, every POSITION mapped to its vendor column, the exact GET_VALUE_SET parameter string construction with pipe delimiters and date conversions, and the complete lookup-or-construct pattern for both SourceSystemId levels.

Part 3 — WSA Implementation. The caching layer in full, key construction patterns, and the deployment rule that makes single-threaded processing non-negotiable.

Abhishek Mohanty · Oracle ACE Associate | AIOUG Member | Oracle HCM Cloud Consultant & Technical Architect — Fast Formulas, Absence Management, Time & Labor, Core HR, Redwood, HDL, OTBI.
