Part 5 covered how a worked hour gets classified into Regular, OT 150%, or OT 200% based on day type and daily threshold. Part 6 adds a second classification that runs in parallel: night surcharge. It doesn't replace any bucket — it stacks on top. The same hour can be Regular pay and Night Surcharge at the same time, without either classification interfering with the other.

The design choice matters because it's counterintuitive. If you're new to TCR output semantics, your instinct is that a worked hour belongs to one bucket — Regular or OT 150 or OT 200. But when night surcharge enters the picture, that mental model breaks. A single hour can (and often does) appear in two buckets simultaneously. Payroll then compensates each classification at its own rate.

A concrete example threads through the post: a worker logs a 12-hour Wednesday shift tagged as night time. Part 5's cascade produces 8 Regular + 2 OT 150% + 2 OT 200%. Part 6's detection produces 12 Night Surcharge hours — the entire shift. Both classifications hit the outputs; payroll pays for both. That's the layering pattern this post explains.

Night Surcharge as a Parallel Classification

The mental model to hold is: every DETAIL entry passes through two independent classification layers. Layer 1 is the day-type-plus-threshold cascade from Part 5 that decides Reg / OT-150 / OT-200. Layer 2 is the PayrollTimeType match from Part 6 that decides Night Surcharge or not. Neither layer knows or cares what the other layer decided.

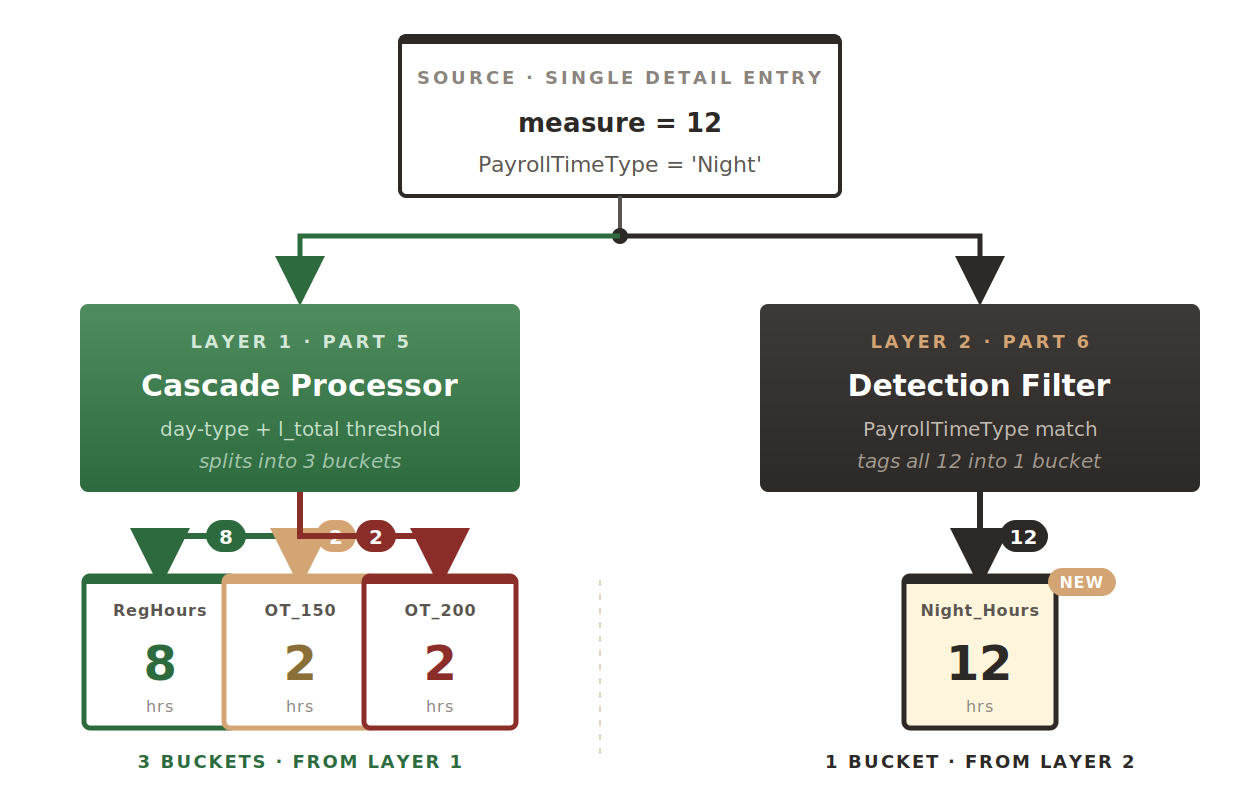

FIGURE 01 · CONTROL FLOW

Two Classification Layers, One Entry

independent · parallel

SUM OF OUTPUT VALUES

8 + 2 + 2 + 12 = 24

Twice the input. Not a double count — Reg/OT and Night are independent classifications. Payroll pays each rate element separately.

READ →

The sum of output values (24) is double the worked hours (12) — intentionally. Reg/OT hours and Night Surcharge hours are separate classifications, not partitions of the same time. Payroll interprets each bucket independently: standard rate × Reg hours + 150% × OT-150 hours + 200% × OT-200 hours + night differential × Night hours.

The PayrollTimeType Match — Detecting a Night Entry

PayrollTimeType is one of the parallel-array input variables introduced in Part 3 — it sits alongside measure, StartTime, StopTime in the input block and gets populated by the worker's timecard entry classification. When the worker submits a shift as "Night," the entry lands in the TCR with PayrollTimeType[nidx] = 'Night' (or whatever code the LDG uses).

The TCR's job is to match that value against the configured night-time code. Two small subtleties matter:

Two things to notice:

• The .exists() guard is mandatory. Phase markers (END_DAY, END_PERIOD from Part 3) leave PayrollTimeType empty. Reading PayrollTimeType[nidx] at those positions without the guard raises "no data found" and aborts the rule.
• Both sides of the compare go through UPPER(). Timecard entry data can be entered in any case — 'Night', 'night', 'NIGHT'. Wrapping both operands in UPPER() makes the compare case-insensitive without needing to enforce case at the entry layer. A single-side UPPER() is a common bug — it works during dev testing with clean data and quietly misses matches in production.

The Configurable Night-Time Code

Hardcoding 'Night' as the trigger value would work for one implementation and break the next. Different LDGs use different codes — 'NIGHT', 'NGT', 'NIGHT_SHIFT', 'N'. The TCR reads the value from a rule input parameter, defaulting to a sensible fallback if the parameter isn't set:

Same pattern Part 2 used for the holiday category code. The three-argument form of get_rvalue_text takes the rule ID, the parameter name, and a default value used when the parameter isn't configured on the rule instance. Deploy the same formula to two LDGs, configure different night codes on their respective rule instances, and both work without a formula change.

Two Night Accumulators — Daily Reset vs Period Persistence

Alongside Out_Measure_Night_Hours, the formula maintains two local night accumulators — l_daily_night_total and l_period_night_total. They differ in exactly one behavior: what happens at the END_DAY phase marker.

l_daily_night_total is zeroed at END_DAY — just like l_total from Part 3. It tracks night hours within a single day, which matters for day-level rules (e.g., a maximum night-hour cap per day). l_period_night_total is not reset — it keeps accumulating across days, ending the period with the total night hours worked. That's the value the monthly night differential is computed against.

FIGURE 02 · ACCUMULATOR TRACE

Daily Sawtooth vs Period Monotonic

TRACE ACROSS

4 days

16

12

8

4

0

hrs

MON

TUE

WED

THU

END_PERIOD

day shift

↻ reset

day shift

↻ reset

→ 12 final

l_daily_night_total · sawtooth peak per day (resets at END_DAY)

l_period_night_total · monotonic climb (persists across days)

THE PATTERN TO SPOT

Maroon bars draw a sawtooth — climb, reset, climb, reset. Gold line only climbs, never falls. If your daily accumulator is climbing across days without resetting, you missed the END_DAY branch. If your period accumulator is resetting between days, you accidentally added it to the END_DAY reset list.

READ →

The final value of l_period_night_total at END_PERIOD equals Out_Measure_Night_Hours. They track the same thing — but the local variable stays available to downstream logic (e.g., monthly night-hour caps) that reads its value inline before the outputs are sealed.

The reset itself is one line in the END_DAY branch of the main loop:

Stacking on Top of the Day-Type Buckets

Back to the worked example: a 12-hour Wednesday shift tagged as night time. The day-type/threshold layer from Part 5 splits the 12 hours into Reg/OT-150/OT-200 buckets. The night detection from Part 6 puts all 12 hours into Out_Measure_Night_Hours. Both classifications hit the outputs independently:

The Weekday Night Split — Preparing for the Cascade

A subtle refinement to watch for in production formulas: some regimes split the night accumulator further into weekday night hours vs weekend/holiday night hours. The pattern reads the day type Part 5 computed and increments a different local depending on the branch:

Why the split? Weekday night hours often feed the Part 9 OT cascade differently than weekend night hours — the weekend variant is usually already at OT 200% via Sunday/Public Holiday classification, so its night differential compounds a different way. Separating the two accumulators inline avoids a downstream re-scan of the output buckets.

The Night Output Bucket

One output array carries night classification to downstream payroll processing. Together with the three worked-time buckets from Part 5 and the two absence buckets from Part 4, the TCR now returns six output arrays at END_PERIOD:

FIGURE 04 · OUTPUT REFERENCE

The Night-Time Output Bucket

RUNNING TOTAL

6 buckets

PORTFOLIO STATE · AFTER PART 6 EXAMPLE · 6 OUTPUT BUCKETS

16

12

8

4

0

hrs

Abs_Cd

metadata

Abs_Hours

absence qty

RegHours

base rate

OT_150

first-tier OT

OT_200

second-tier OT

Night_Hours

← THIS POST

empty in this example · absence buckets (no absence entered)

worked-time · Part 5 cascade

night surcharge · Part 6 parallel classification

☾

FOCUS BUCKET · PART 6

Out_Measure_Night_Hours

12 hrs

FED BY

Every DETAIL entry whose PayrollTimeType matches the configured night code (case-insensitive via UPPER()).

STACKS ON TOP OF

Reg / OT-150 / OT-200 without disturbing them. The 12 hrs here are the same underlying 12 hrs already classified into the 3 worked-time buckets — payroll pays each rate element separately.

READ →

Six output buckets so far — two absence, three worked-time, one night. Parts 7 and 8 add night-OT spillover (a second night bucket that captures automatic night detection based on clock time) and OT claim reconciliation buckets. The output inventory keeps growing without any single bucket's semantics changing.
