Part 6 covered the easy case — the timecard entry is tagged as PayrollTimeType = 'Night' and the TCR just needs to detect the tag. Part 7 covers the case that gives engineers pause: the entry isn't tagged, but its physical clock time falls squarely inside the night window. A shift stamped 'Regular' can still owe night differential if it runs from 22:00 through the small hours.

The TCR has to detect the overlap between the shift and the configured night window purely from StartTime and StopTime. And because shifts routinely cross midnight — 22:00 to 06:00 is one of the most common patterns in a 24/7 operation — the arithmetic has to handle a stop-time that's numerically less than the start-time. That's where StopTime + 24 comes in.

The worked example threading through the post: a worker logs one shift starting at 20:00 Wednesday and ending at 08:00 Thursday — 12 hours total, tagged PayrollTimeType = 'Regular'. Part 6's detection sees nothing to do. Part 7's detection finds 8 hours in the night window — from 22:00 Wednesday to 06:00 Thursday — and has to split those 8 hours across the four night buckets based on which Part 5 tier each hour fell into. The final allocation: 6 Regular-Night + 2 OT-150-Night + 0 OT-200-Night + 0 Weekend-Night.

The Untagged Night Entry Problem

Not every organization tags night shifts at the timecard entry layer. Some rely purely on PayrollTimeType for classification (Part 6's world). Others let workers submit everything as 'Regular' and expect the TCR to figure out night eligibility from the clock time. A robust TCR runs both detection paths — one for the tag, one for the time — so the formula works regardless of how the timecard is configured downstream.

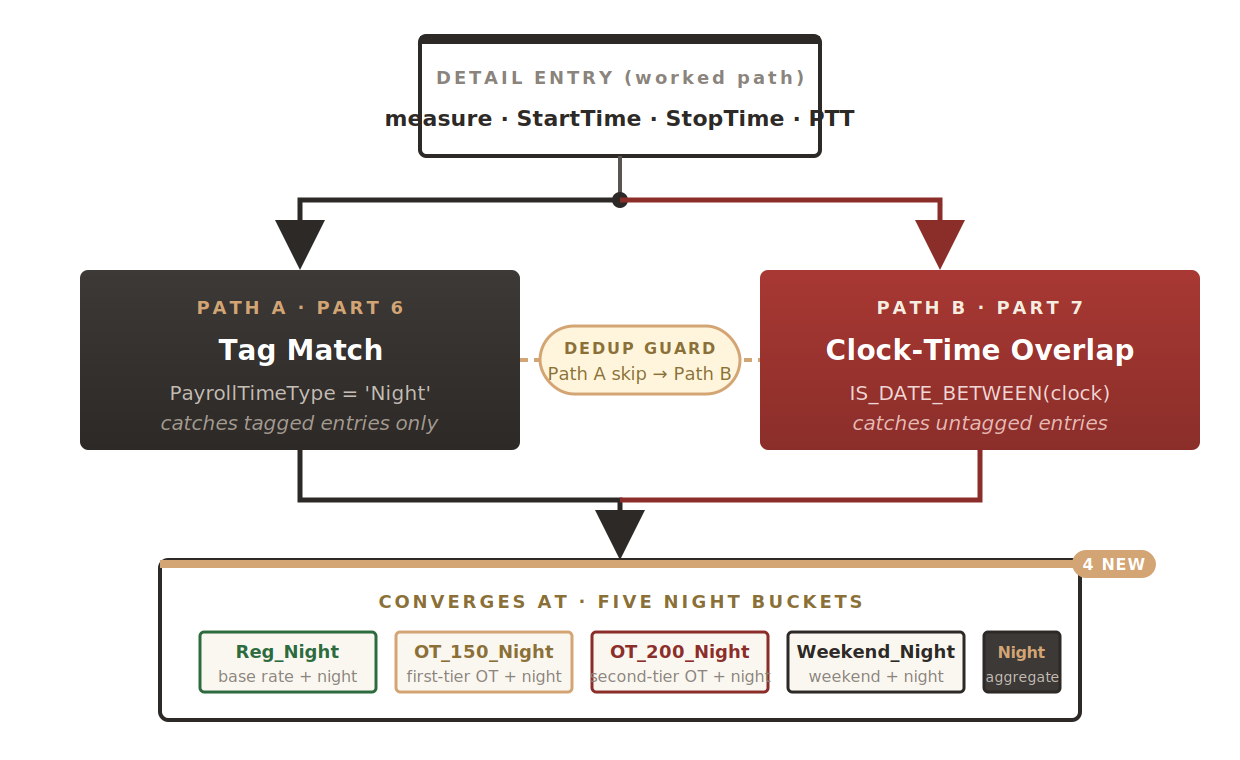

FIGURE 01 · DETECTION PATHS

Two Paths, One Bucket Family

tag · clock · guard

TWO PATHS · ONE POLICY

Both paths feed the same bucket family. The dedup guard makes them mutually exclusive per entry: if Path A already fired for this nidx, Path B skips it — otherwise the same night hours would be counted twice.

READ →

Part 6's single Out_Measure_Night_Hours stays as an aggregate. Part 7 adds four granular buckets that split night hours by day-type and OT tier — because payroll needs the granularity to apply different rate elements.

The Night Window as a Rule Parameter

The night window's start and end hours aren't hardcoded — they're rule input parameters. Different jurisdictions define night hours differently (22:00–06:00 is common but not universal), and even within one jurisdiction the definition can differ by contract:

Two numbers held in decimal hours. 22 means 22:00 (10 PM); 6 means 06:00 (6 AM). The formula treats these as anchors on a 24-hour clock — with the understanding that when end < start, the window wraps past midnight.

IS_DATE_BETWEEN and the StopTime + 24 Unwrap

A shift from 22:00 Wednesday to 06:00 Thursday is 8 hours long. But if you subtract StopTime - StartTime naively, you get 6 - 22 = -16. Negative. Because the numeric clock resets to zero at midnight, and any arithmetic that ignores day boundaries collapses. The StopTime + 24 unwrap is the standard fix: if the stop-time is numerically less than the start-time, add 24 to it. Now the shift runs from 22 to 30 on an extended clock, and every subsequent calculation works.

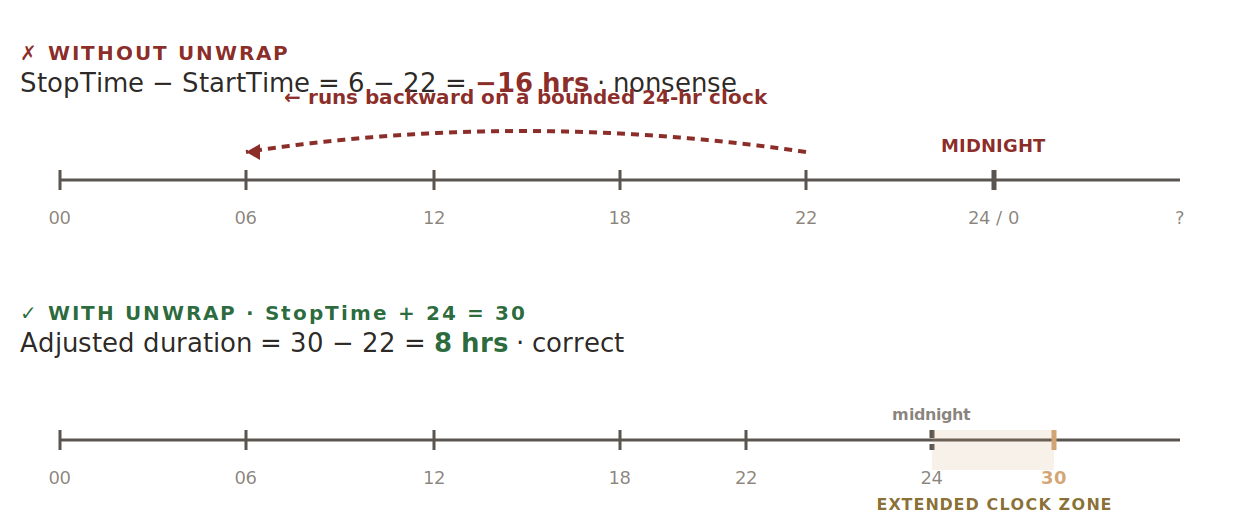

FIGURE 02 · TIME ARITHMETIC

The Midnight-Crossing Unwrap

EXTENDED CLOCK

0 → 30

IF (l_stop < l_start) THEN
  l_stop_adj = l_stop + 24  /* shift wrapped past midnight */
ELSE
  l_stop_adj = l_stop

READ →

The + 24 trick works because everything downstream — the night window compare, the overlap arithmetic, all of it — operates on the same extended clock. As long as both l_stop_adj and the night-window end are consistently unwrapped, day boundaries stop mattering.

Computing the Night-Window Overlap

Once the shift's clock times are unwrapped, computing the overlap with the night window is a two-line clamp. GREATEST and LEAST — same idiom Part 5 used for spillover — do the whole job:

Plug in the worked example — l_start = 20, l_stop_adj = 32, l_win_start = 22, l_win_end = 30. Overlap runs from MAX(20,22) = 22 to MIN(32,30) = 30, so night hours detected = 30 - 22 = 8. The shift includes 2 hours before the night window (20:00–22:00) and 2 hours after (06:00–08:00) that don't qualify.

Allocating Night Hours Across Four Buckets

The 8 detected night hours can't all go into one bucket. Payroll needs to know which tier each night hour belonged to under Part 5's cascade — because a night hour that's also an OT 200 hour pays at a different combined rate than a night hour that's still Regular. Four output buckets carry the split:

• Out_Measure_Reg_Night_Hours — weekday night hours in the Regular tier (below the daily OT threshold)
• Out_Measure_OT_150_Night_Hours — weekday night hours in the OT 150 tier
• Out_Measure_OT_200_Night_Hours — weekday night hours in the OT 200 tier
• Out_Measure_Weekend_Night_Hours — all night hours on Saturday, Sunday, or Public Holiday (day-type takes precedence over tier)

In the worked example the shift is on a Wednesday (weekday), so the Weekend_Night bucket stays at zero. The remaining 8 night hours split by Part 5 tier — specifically, where each night hour falls in the shift's running l_total position:

Deduplication with Part 6 Detection

If both detection paths were allowed to fire on the same entry, the same night hours would be counted twice — once via Part 6's tag match and once via Part 7's clock-time overlap. The formula prevents that by giving Part 6 priority: if the entry is tagged as night, Part 7 skips the entry entirely. A local flag set inside Part 6's branch does the guarding:

The flag is reset at every new DETAIL iteration. Two paths, one policy, zero double-counts.

The Updated Output Portfolio

Four new buckets join the running inventory. The output-array count is now ten — two absence, three worked-time, one aggregate night, and four granular night buckets:

FIGURE 05 · UPDATED PORTFOLIO

Ten Output Buckets After Part 7

TOTAL

10 buckets

PORTFOLIO STATE · AFTER PART 7 EXAMPLE · 10 OUTPUT BUCKETS

12

9

6

3

0

hrs

Abs_Cd

Abs_Hrs

RegHours

OT_150

OT_200

Night

Reg_Ngt

NEW

OT150_Ngt

NEW

OT200_Ngt

NEW

Wknd_Ngt

NEW

not activated · exists but unfilled in this scenario

Part 7 addition · gold border indicates new bucket

READ →

The gold dashed vertical divider separates Parts 1–6 buckets (left) from Part 7's four new additions (right). Note that in this scenario Out_Measure_Night_Hours stays at 0 — the Part 6 tag match didn't fire because the entry was tagged 'Regular'. The clock-time overlap detection did all the work.
